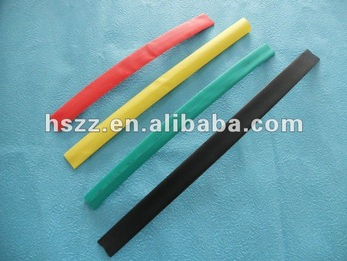

non-conductive material heat shrink tube
1.Rohs/ UL compliant
2.lame retardant
3.high shrink ratio 2:1
4.watertight sealing
non-conductive material heat shrink tube
Features
1 Operating Temperature:-55~ 125 centi degree;
2.low shrinking Temperature:Start at 70 centi degree
3.flexible,flame retardant;
Applications
· Wire splices and terminations
· Wire harnesses
· Mechanical protection and fire-resistant covering
· Insulation and strain relief of terminals and connections
Properties:
|
Heat Shrink Tubing(DZRS ID1-180mm)(Shrink ratio:2:1) |
|||
|
Description |
Test Methods |
Values |
|
|
Physical |
Tensile strength(Mpa) |
GB/T1040 |
≥12 |
|
Breakage elongation rate(%) |
≥200 |
||
|
Tensile strength(Mpa) |
UL224 158°C*168hr |
≥10 |
|
|
Breakage elongation rate(%) |
≥200 |
||
|
Low temperature flexibility |
(-40°C x 4h) |
No cracking |
|
|
Electrical |
dielectric strength(KV/mm) |
GB/T1408 |
≥15 |
|
Voltage resistant |
UL224 |
2.5KV No breakdown |
|
|
volume resistivity(ohm.cm) |
GB/T1410 |
≥1*1014 |
|
|
Chemical |
Anti-corrosive performance |
UL224 158°C*168hr |
Pass |
|
Copper stability |
Pass |
||
|
Fire resistant |
UL224 |
VW-1 |
|
specification
